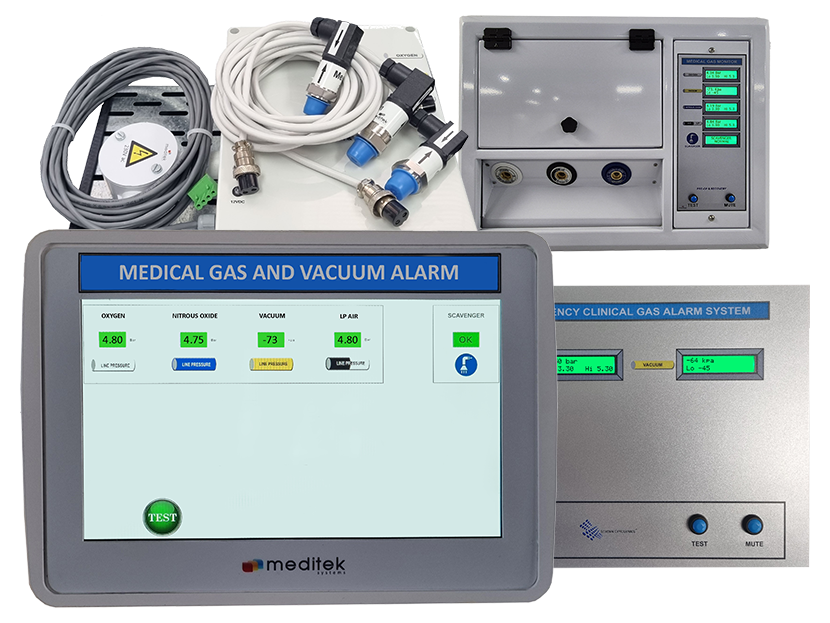

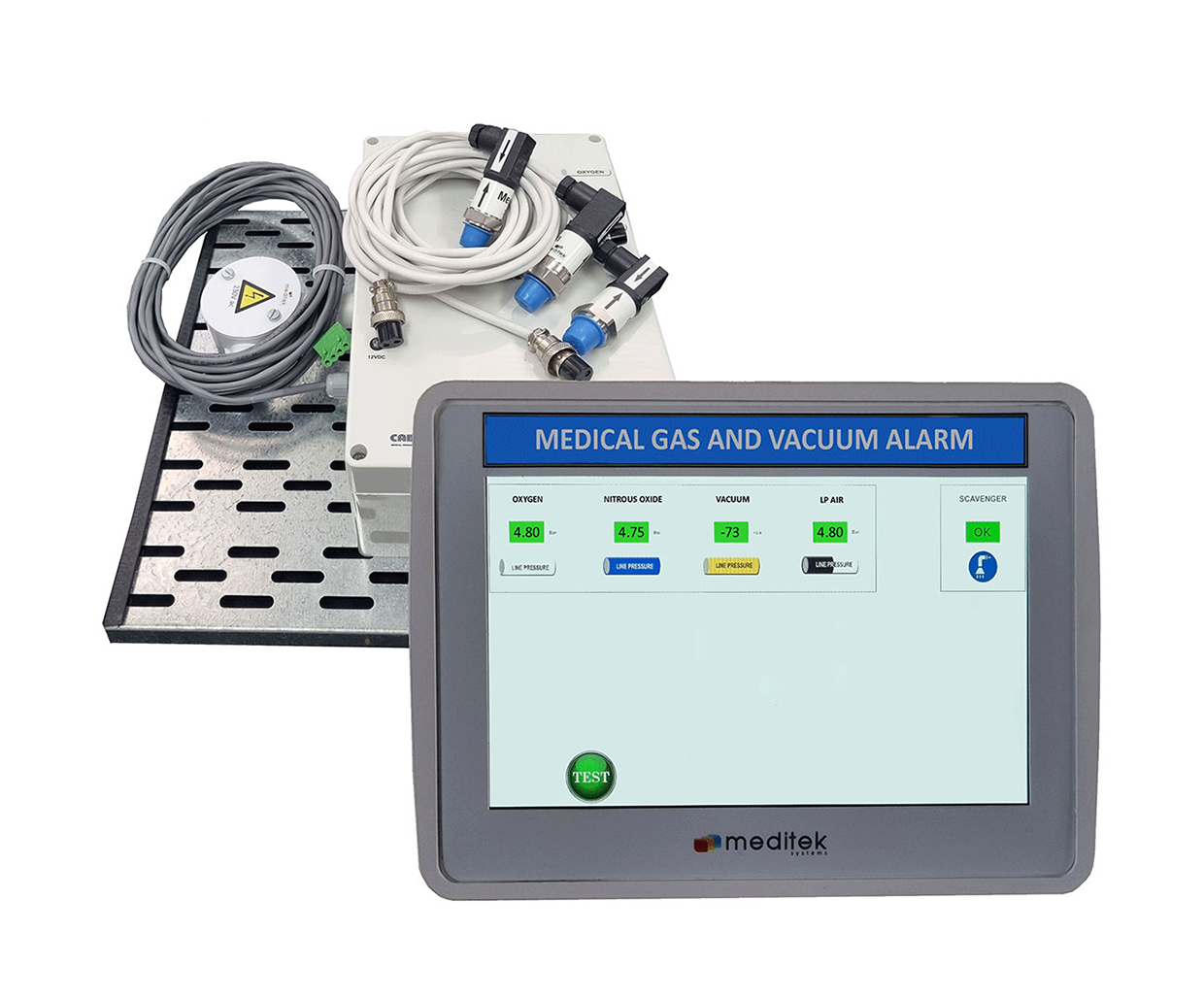

This EC medical gas alarm system is housed in an ABS Bopad enclosure. The Digital Alarm panel monitors up to 8 critical gas line pressures. An additional input is also provided to monitor a Voltage Free (VF) switch such as a scavenger. The full colour 10.1” touchscreen displays individual pipeline gases and their current pressures. Normal pressures are represented by a green display, while fault conditions are indicated as a flashing red display.

The screen layout is fully customisable using existing animated images or actual photographic representations.

Additional mimic (Slave) panels, installed in the hospital, can be connected via the Medbus® built-in interface.

Other features include:

• Modbus® output / BMS signal.
• Event and data logging.
• Broken cable / sensor disconnect alarm
• Fully customisable display and alarm settings.
• Immediate viewing of past history per alarm input.
• Simple addition or removal of alarm inputs.
• Mobile App (Apilert®). (Optional)
• Battery Backup Power (Li-ion). (Optional)

During an alarm condition, an audible buzzer is activated which can be manually muted. The visual alarm will however continue to indicate a fault until such time as the fault is rectified. The audible alarm is re-activated should an additional alarm condition occur with a “remind” buzz every 15 minutes.

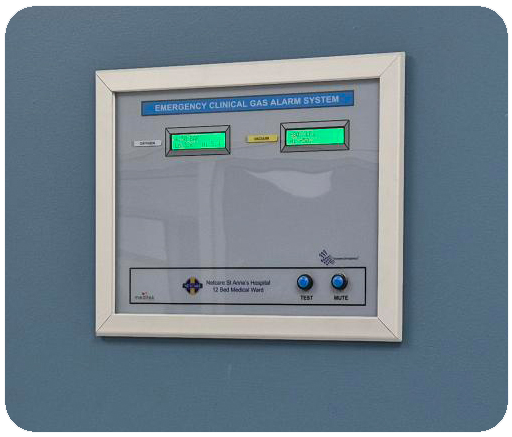

This EC digital LCD medical gas alarm is housed in either a surface mount weather-proof enclosure with a transparent hinged lid or in an aluminium frame mount version. This gas alarm will monitor the individual pipeline pressure of the gases at a theatre, ward or procedure room and indicate a 20% variance up or down of the nominal pressure. These alarms are installed on the demand-side of every isolating valve box.

The facia displays the pressure as well as alarm limits for each gas being monitored. This can range from a single gas up to a maximum of 8 gases. Each gas has its’ own colour backlit LCD display. This LCD will be green for normal and a flashing red if the pressure is too high, too low or the sensor is faulty or disconnected.

The “Hi” and “Lo” alarm limits can be set by adjusting the 2 potentiometers located on the side of the alarm enclosure. These limits are displayed on the 2nd LCD line. During an alarm condition an audible buzzer is activated which can be manually muted. The visual alarm LCDs will however continue to indicate a fault until such time as the fault is rectified. The audible alarm is re-activated should an additional alarm condition occur.

Operating from a standard 110 / 230V ac supply, the system uses a 12VDC power supply to supply the sensors and the control unit.

Features:

• Displays live line pressures
• Colour changing backlit displays
• Mute & Test Buttons
• Audible alarm on high & low alarm conditions
• Pressure sensors (-1 to 16 bar)
• Pre-set, adjustable Min & Max alarm ranges
• BMS interface ready
• Frame or Surface mount panels – ward alarms
• Brushed stainless steel finish on TCP panels
• SAHPRA registered
• SANS 7396-1-2016 compliant
